Automotive fasteners & vehicle components · Chassis, suspension, brakes and exhaust
NVH and mounting hardware
NVH and mounting hardware from REL India’s automotive fasteners and vehicle components range — standard or made to your drawing.

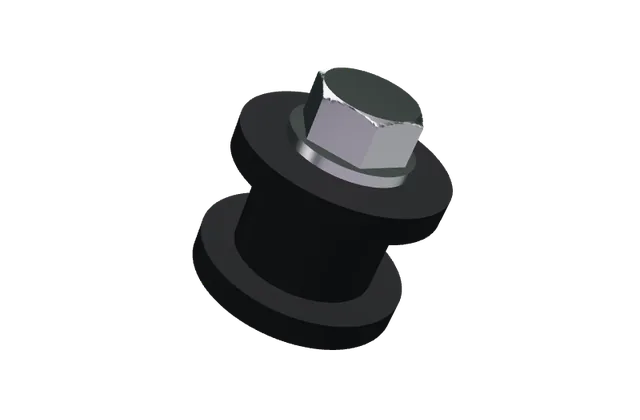

Representative 3D
Specifications
Specifications
- Family
- Automotive fasteners and vehicle components
- Group
- Chassis, suspension, brakes and exhaust
- Materials (examples)
- Boron steel, SAE 1018 / 10B21, 15B25 / 1541, 4140, EN 8D, EN 18D, 16MnCr5
- Made to
- Customer drawing or sample
Exact grade, size, finish and standard are confirmed against your drawing or enquiry.
Industries
Used in
- Automotive OEM & component manufacturing
- Electric vehicles & mobility
- Automotive aftermarket & retail replacement
- Vehicle segments
Need nvh and mounting hardware?
Send a drawing, a sample or a part number. Our team replies with feasibility and a quotation.
Quote this product Call sales
Explainer
Rubber-to-metal bonding inserts

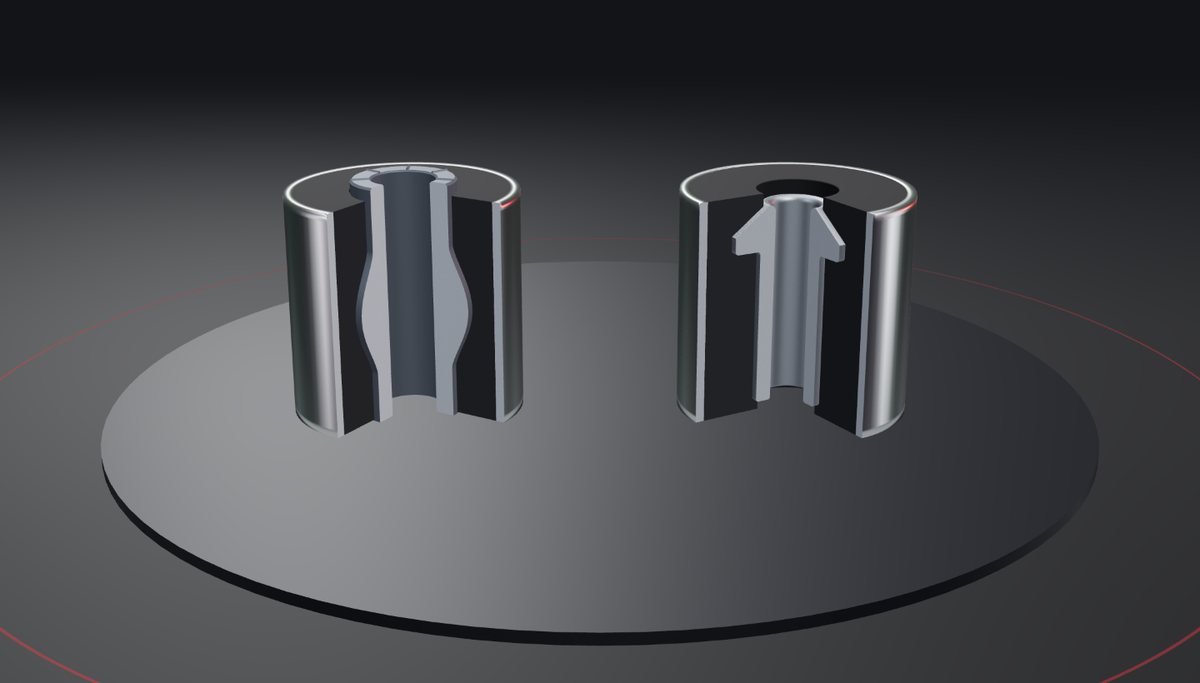

An NVH bush isolates vibration between a suspension arm, subframe or engine mount and the body. Rubber is moulded and chemically bonded to a metal inner metal or inner sleeve; the outer shell is pressed into the arm or bracket.
- The insert carries the bolt clamp load — so it is cold formed in boron steel and heat treated (around 30–36 HRC).
- Its shape locks the rubber: a flared conical flange, a bulged barrel, end slots or serrated end faces stop the rubber turning or sliding.
- The surface is prepared for bonding — steel-grit blasted or zinc phosphated — and kept free of oil so the bonding agent holds.
- Ends and bores are held to tight tolerances so the bush seats square and the bolt passes freely.
