Studs
Studs from REL India’s standard fasteners and hardware range — standard or made to your drawing.

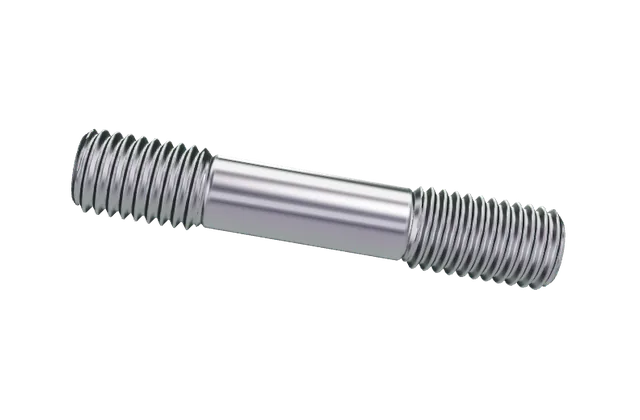

Representative 3D
Specifications
Specifications
- Family
- Standard fasteners and hardware
- Group
- Washers, studs and threaded rods
- Standards
- Metric, inch/UNC/UNF, DIN, ISO, ASME, IFI
- Principal range
- M3–M24
- Threaded rods / bars
- Carbon, alloy and stainless steel, lengths up to 5,000 mm
Exact grade, size, finish and standard are confirmed against your drawing or enquiry.
Industries
Used in
- Automotive OEM & component manufacturing
- Automotive aftermarket & retail replacement
- Vehicle segments
- Furniture manufacturing
- Construction & structural
- Solar & renewable-energy structures
- Power plants & energy infrastructure
- General engineering & industrial manufacturing
- Food, medical & marine
- Tooling & specialised equipment
- Retail, DIY & e-commerce hardware
- Electrical hardware & fittings
- Appliances / white goods
- Licence-plate fastening (vehicles)
Need studs?
Send a drawing, a sample or a part number. Our team replies with feasibility and a quotation.
Quote this product Call salesStandards
Standards for studs
- DIN 938
- DIN 939
- DIN 835
- DIN 940
- ASME B18.31.2
Also made to customer drawings and to other national or company standards on request.
Reference only — confirm against drawing. Metal-end (screw-in) length b_m, nominal. Nut-end length and overall length to drawing.
| M3 | 0.5 | 3 | 3.8 | 6 | 7.5 |
|---|---|---|---|---|---|
| M4 | 0.7 | 4 | 5 | 8 | 10 |
| M5 | 0.8 | 5 | 6.3 | 10 | 12.5 |
| M6 | 1 | 6 | 7.5 | 12 | 15 |
| M8 | 1.25 | 8 | 10 | 16 | 20 |
| M10 | 1.5 | 10 | 12.5 | 20 | 25 |
| M12 | 1.75 | 12 | 15 | 24 | 30 |
| M14 | 2 | 14 | 17.5 | 28 | 35 |
| M16 | 2 | 16 | 20 | 32 | 40 |
| M18 | 2.5 | 18 | 22.5 | 36 | 45 |
| M20 | 2.5 | 20 | 25 | 40 | 50 |
| M22 | 2.5 | 22 | 27.5 | 44 | 55 |
| M24 | 3 | 24 | 30 | 48 | 60 |
